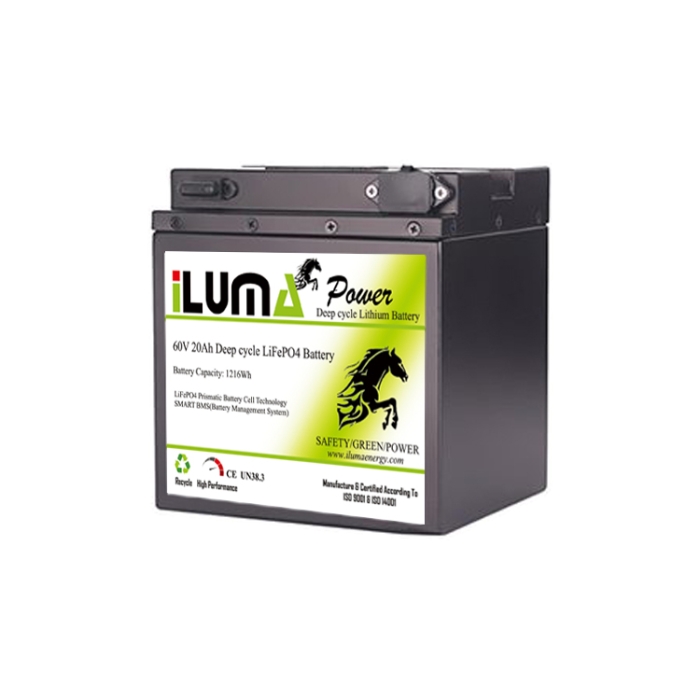

60V 20Ah-1 LiFePO4 Battery

ILUMA‘s deep-cycle lithium iron phosphate battery 60V 20Ah has the characteristics of small size, lightweight and long lifespan. It is the best choice to replace lead-acid with the advantage of low maintenance cost, flexibility, fast charge & discharge performance and ultra-low maintenance costs.
Lithium iron phosphate batteries are the perfect replacement for any of your lead-acid batteries.
Customized battery pack case in suitable dimension by including terminals and cables are offered by us
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !

---

Benefits of 60V 20Ah Lithium Iron Battery:

60V 20Ah Lithium Iron Phosphate battery weighs only 1/3 of Lead-acid battery but its lifecyle is 10 times longer than Lead-acid. You can get more efficient energy, even in a harsh environment.
It has the advantages of good performance, lightweight, small size, no memory effect, low self-discharge rate and longer lifespan. Its maintenance cost is the lowest. Without memory effect, it cancharge at any time for backup. The waterproof leel is IP65 and it can be installed where you want.

---

ILUMA Lithium Iron Phosphate Battery 60V 20Ah:

• ILUMA's 60V 20Ah Lithium iron phosphate battery uses the latest battery technology, which equipped with advanced BMS
• It has 100% DOD for over 3500 cycles. Long cycle life (Over 8 years of battery life, 10 years designed life).

---

Widely Applications of Lithium Battery 60V 20Ah:




60V 20Ah lithium iron phosphate battery's application is mainly in Boat, RV, Floor sweeper, Marine gold, Camper,  Solar system, Energy storage, Off-grid photovoltaic and others applications.
It can be a good substitute for lead-acid and brings new energy standard to your home energy storage, business and industrial electricity.

---

Data Sheet

Item	Parameter
Battery Energy	1216Wh
Rated voltage	60.8V
Rated capacity	20Ah
Max charge voltage	69.4V
Cut-off voltage	40V
Charge current	10A
Continuous discharge current	20A
Dimension	220*160*155mm
Weight	8kg

• Over-charge / Over-discharge Ability to withstand over-charge / withstand over-discharge, and there is no fire, no exploding and work well
• Short circuit Ability to withstand short circuit, and there is no file, no exploding
• Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
• Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding

Feature Listing

• Attractive cycle life
• Extended safety performance
• Wide operating temperature range
• Unrivalled high temperature performance
• Green energy without metal contaminat
• High capacity
• Steady output voltage
• Little self-discharge
• Double safety protection
• Withstanding very high level of vibrations and shocks

• AWP
• Boat
• RV
• Off-grid photovoltaic
• UPS system
• Golf
• Backup Power
• Electric Vehicles
• Floor Machines
• Marine, Yachts, Sailing
• Recreational Vehicles
• Solar
• Other Deep Cycle Applications
