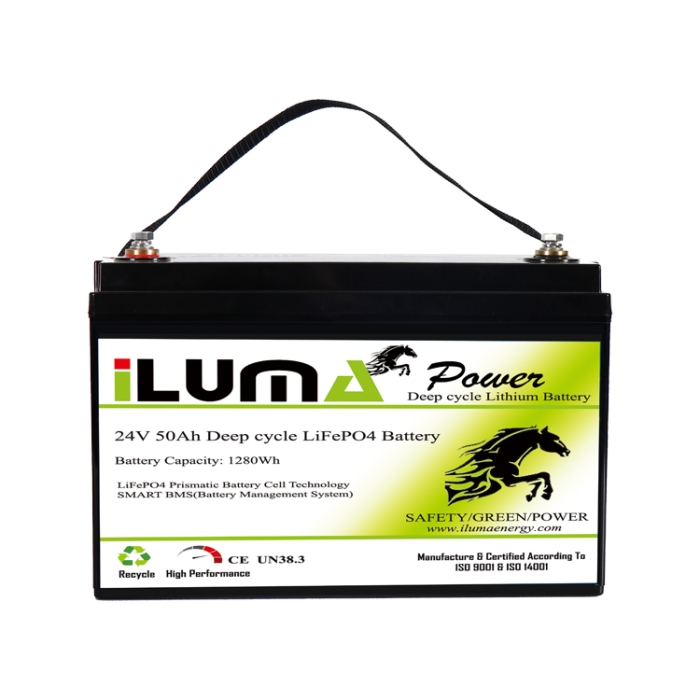

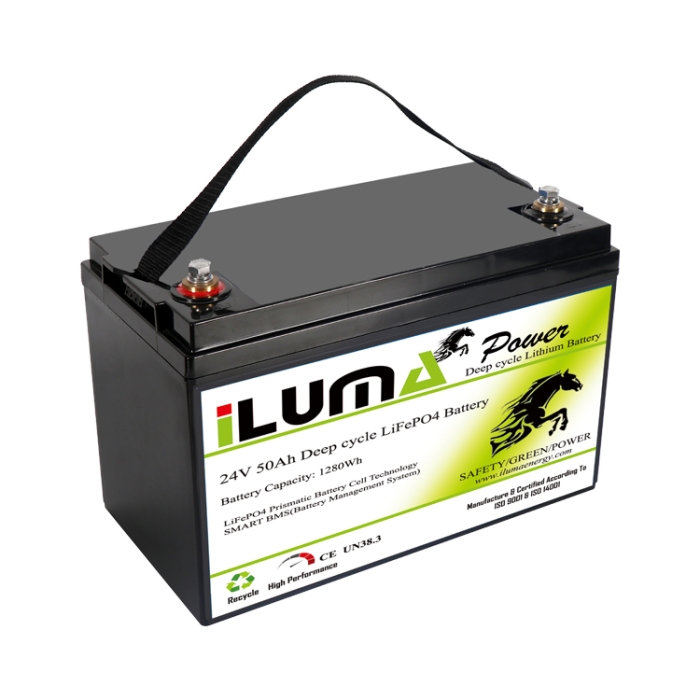

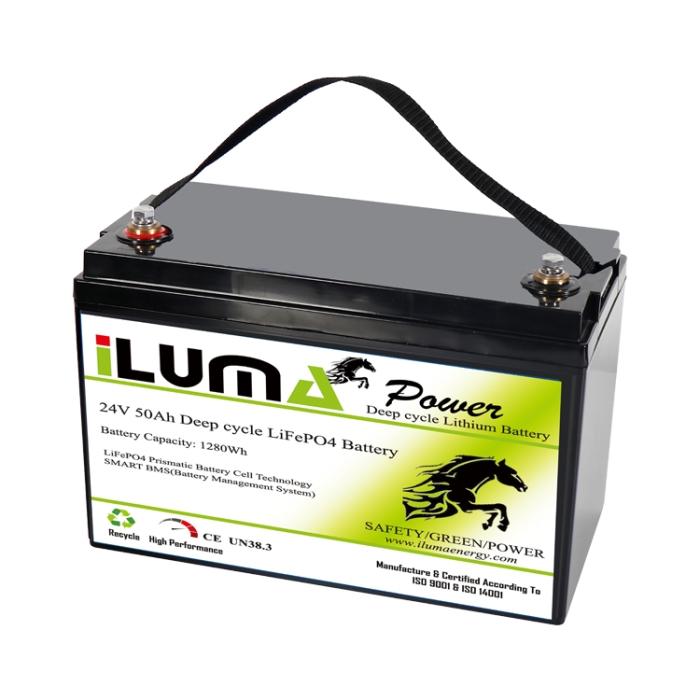

24V 50Ah LiFePO4 Battery

ILUMA‘s deep-cycle lithium iron phosphate battery 24V 50Ah has the characteristics of small size, lightweight and long lifespan. It is the best choice to replace lead-acid with the advantage of low maintenance cost, flexibility, fast charge & discharge performance and ultra-low maintenance costs.
Lithium iron phosphate batteries are the perfect replacement for any of your lead-acid batteries.
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !

---

Benefits of 24V 50Ah Lithium Iron Battery:

24V 50Ah Lithium Iron Phosphate (LiFePO4) battery with a longer cycle life, discharge depth DOD100%, it can operate normally in a harsh environment, such as high termperature, overcharging, and the short circuit does not have a worry too much. Lithium battery has an integrated  management system, much safter. In addition, we can also equip the battery with the Bluetooth module, which making your monitor the battery status in real-time.

---

ILUMA Lithium Iron Phosphate Battery 24V 50Ah:

• ILUMA's Lithium Iron Phosphate Battery 24V 50Ah use high quality A-grade cells with high capacity and high performance.
• It has 100% DOD for over 3500 cycles. Long cycle life (Over 8 years of battery life, 10 years designed life).
• Voltage: 25.6V
• Amp Hours: 50Ah
• Length: 13 in (329mm)
• Width: 6.8 in (172mm)
• Height: 8.4 in (214mm)
• Weight: 28.5lbs (12.7kgs)

---

Widely Applications of Lithium Battery 24V 50Ah:

• Electric Vehicles
• Marine, Boats, Yachts, Sailing
• Recreational Vehicles
• Solar, Backup Power
• Other Deep Cycle Applications

---

Data Sheet

Item	Parameter
Battery Energy	1280Wh
Rated voltage	25.6V
Rated capacity	50Ah
Max charge voltage	29.2V
Cut-off voltage	20V
Charge current	50A
Continuous discharge current	50A
Peak discharge current	100A
Dimension	329*172*214mm
Weight	12.7kg

• Over-charge / Over-discharge Ability to withstand over-charge / withstand over-discharge, and there is no fire, no exploding and work well
• Short circuit Ability to withstand short circuit, and there is no file, no exploding
• Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
• Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding

Feature Listing

• Attractive cycle life
• Extended safety performance
• Wide operating temperature range
• Unrivalled high temperature performance
• Green energy without metal contaminat
• High capacity
• Steady output voltage
• Little self-discharge
• Double safety protection
• Withstanding very high level of vibrations and shocks

• AWP
• Boat
• RV
• Off-grid photovoltaic
• UPS system
• Golf
• Backup Power
• Electric Vehicles
• Floor Machines
• Marine
• Recreational Vehicles
• Solar
