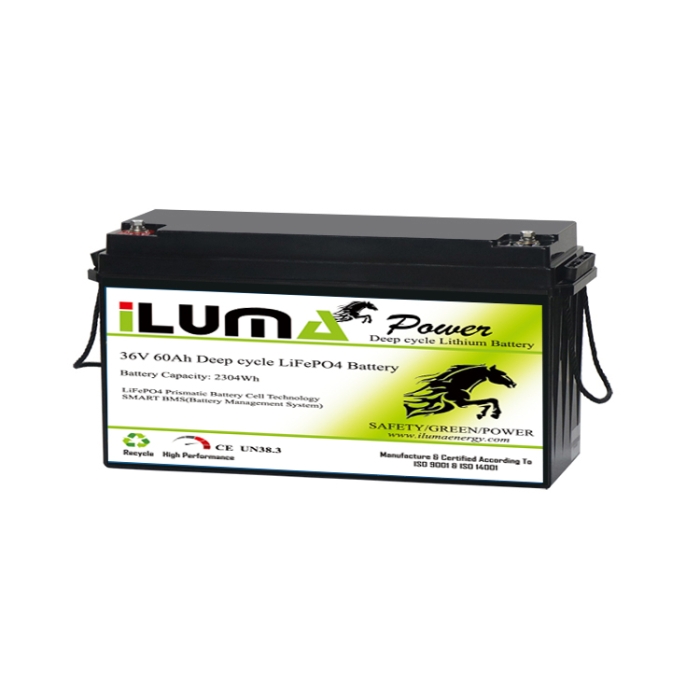

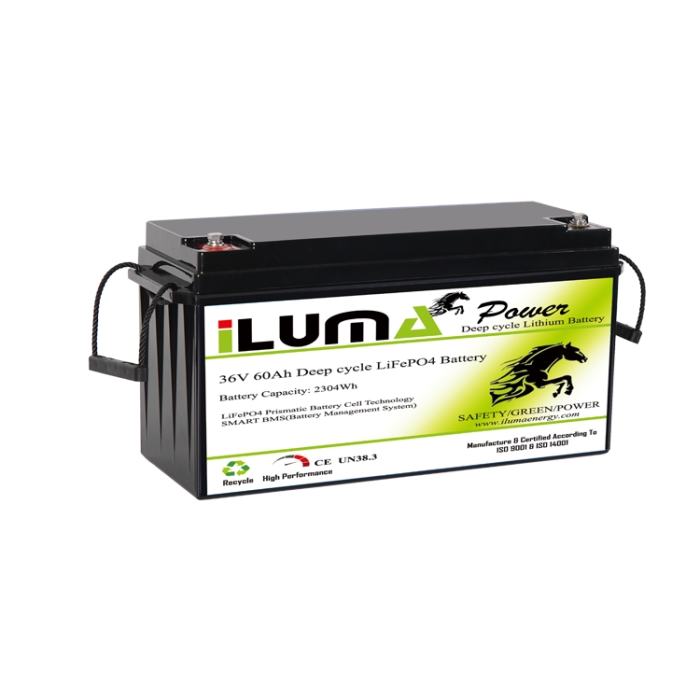

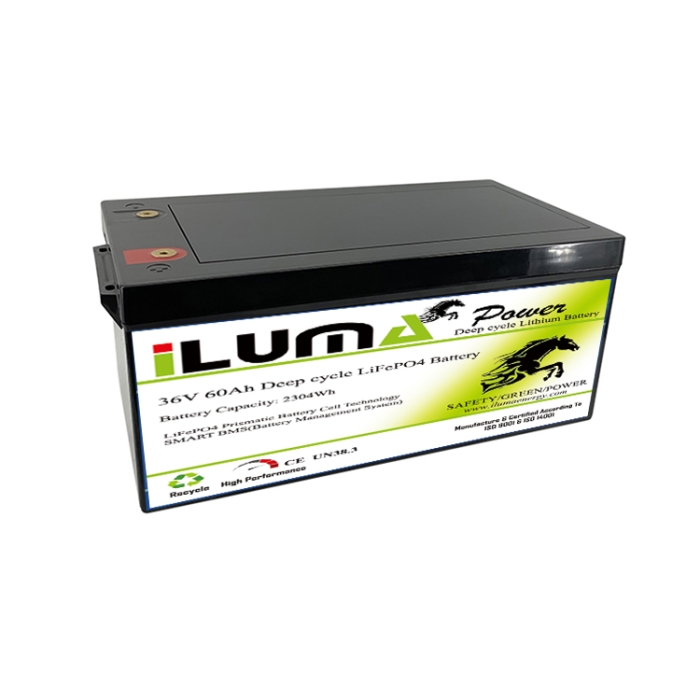

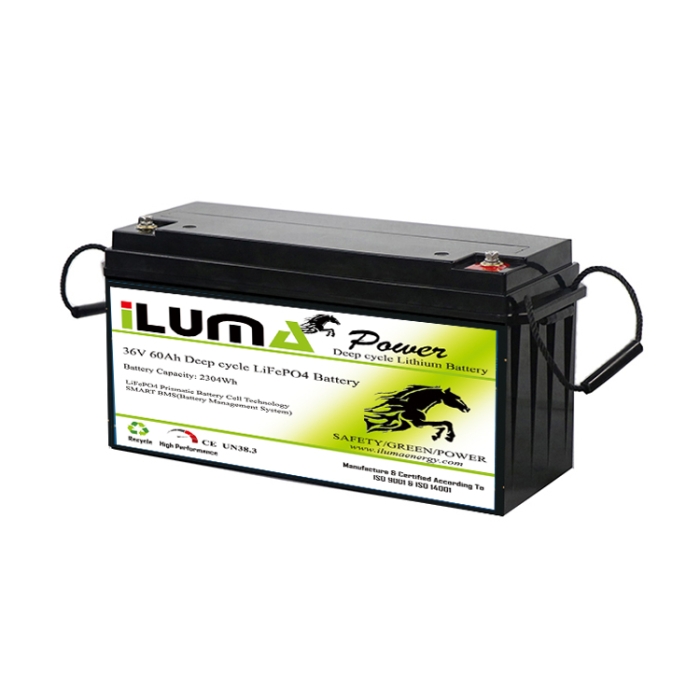

36V 60Ah Lithium Iron Deep Cycle Battery
ILUMA‘s deep-cycle lithium iron phosphate battery 36V 60Ah has the characteristics of small size, lightweight and long lifespan. It is the best choice to replace lead-acid with the advantage of low maintenance cost, flexibility, fast charge & discharge performance and ultra-low maintenance costs.
Lithium iron phosphate batteries are the perfect replacement for any of your lead-acid batteries.
Customized battery pack case in suitable dimension by including terminals and cables are offered by us
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !
Benefits of 36V 60Ah Lithium Iron Battery:
36V 60Ah Lithium Iron Phosphate battery weighs only 1/3 of Lead-acid battery but its lifecyle is 10 times longer than Lead-acid. You can get more efficient energy, even in a harsh environment.
It has the advantages of good performance, lightweight, small size, no memory effect, low self-discharge rate and longer lifespan. Its maintenance cost is the lowest. Without memory effect, it cancharge at any time for backup. The waterproof leel is IP65 and it can be installed where you want.
ILUMA Lithium Iron Phosphate Battery 36V 60Ah:
-
ILUMA's 36V 60Ah Lithium iron phosphate battery uses the latest battery technology, which equipped with advanced BMS
-
It has 100% DOD for over 3500 cycles. Long cycle life (Over 8 years of battery life, 10 years designed life).
Widely Applications of Lithium Battery 36V 60Ah:
36V 60Ah lithium iron phosphate battery's application is mainly in Boat, RV, Floor sweeper, Marine gold, Camper, Solar system, Energy storage, Off-grid photovoltaic and others applications.
It can be a good substitute for lead-acid and brings new energy standard to your home, business and industrial electricity.
Data Sheet
|
Item
|
Parameter
|
|
Battery Energy
|
2304Wh
|
|
Rated voltage
|
38.4V
|
|
Rated capacity
|
60Ah
|
|
Max charge voltage
|
43.8V
|
|
Cut-off voltage
|
30V
|
|
Charge current
|
60A
|
|
Continuous discharge current
|
60A
|
|
Peak discharge current
|
120A
|
|
Dimension
|
485*175*235mm
|
|
Weight
|
21.55kg
|
Technology Advantage
|
Usable Capacity (AH)
|
60AH
|
|
Depth of Discharge
|
>100% DOD
|
|
Reserve Minutes @ 20A
|
180 min
|
|
Reserve Minutes @ 100A
|
90 min
|
|
Self Discharge
|
<3% per mo
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
Cell Type
|
Cylindrical
|
|
Modular
|
Series or Parallel Connection
|
Safety Characteristics
-
Over-charge / Over-discharge Ability to withstand over-charge / withstand over-discharge, and there is no fire, no exploding and work well
-
Short circuit Ability to withstand short circuit, and there is no file, no exploding
-
Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
-
Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding
Feature Listing
-
Attractive cycle life
-
Extended safety performance
-
Wide operating temperature range
-
Unrivalled high temperature performance
-
Green energy without metal contaminat
-
High capacity
-
Steady output voltage
-
Little self-discharge
-
Double safety protection
-
Withstanding very high level of vibrations and shocks
Storage and Transportation
-
Based on the character of the cell, a proper environment for transportation of the LiFePO4 battery pack need to be created to protect the battery
-
During transportation, 50% SOC must be kept to ensure that short circuit, the appearance of liquid in the battery, or immersion of battery in liquid never occure
-
The battery should be kept at -20℃ ~ 45℃ in the warehouse where it's dry, clean and well-ventilated
-
During loading of battery, attention must be paid against dropping, turning over and serious stacking
Applications
-
AWP
-
Boat
-
RV
-
Off-grid photovoltaic
-
UPS system
-
Golf
-
Backup Power
-
Electric Vehicles
-
Floor Machines
-
Marine, Yachts, Sailing
-
Recreational Vehicles
-
Solar
-
Other Deep Cycle Applications
