Portable Power For Camping

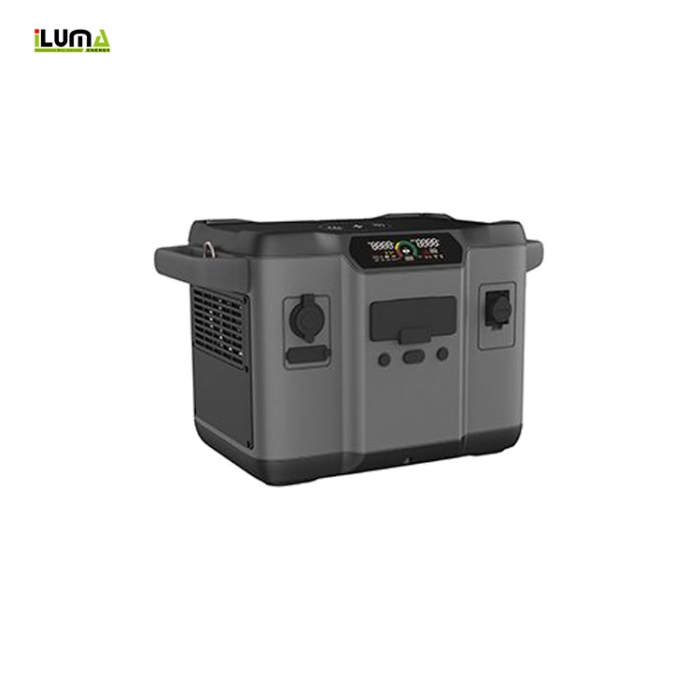

Lithium Power Station 1200W
ILUMA‘s ILP1200W lithium power station offers the latest in portable power generation. It keeps the grid connected.
ILUMA can customizes a high-quality lithium power station with a cash battery management system, which alloing you to reduce your dependence on utility power and the loss of power outages.
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !
Benefits of 1200W Portable Power Station:
ILP1200W is a lithium battery-powered portable backup power supply. It's an all-in-one portable power station for camping, RV travel, car travel, hiking, finishing and other outdoor activies, as well as an off-grid power supply and emergency power supply when electricity is cut.
ILUMA 1200W Portable Power Station:
-
ILUMA's 1200W Power Station has a variety of internationally recognized certificates to ensure your safety and quality
-
There are large capacity, fast charging and external extended battery pack
-
It capacity can reach 1170Wh to support your electricty consumption when you go out
-
It's waterproof, durable, energy-efficiency and has a longer lifespan
Widely Applications of 1200W Portable Power Station:
The portable energy storage power supply contains a lithium-iron battery as stored energy and a built-inverter circuit.
It supports AC and DC input charging through main power and solar panels.
It is charged through AC220V (110V), DC 5V and 12V too.
It brings much conveniences when you do travel, outdoor operation or suffering earthquakes, medical emergencies and power failures.
Data Sheet
|
Model
|
E5A
|
E5B
|
E5C
|
E5D
|
Internal Battery
|
Battery Capacity
|
1395Wh
(37.7Ah /37V)
|
E5A√
|
1170Wh
(32.5Ah /36V)
|
E5B√
|
1800Wh
(50Ah /36V)
|
E5A√
|
1267Wh
(33Ah /38.4V)
|
E5D√
|
AC Output
|
Output Voltage
|
100V/110V OR 220V/230V
|
|
Output Frequency
|
50Hz & 60Hz
|
|
Rated Power
|
1200W
|
|
Peak Power
|
≥2400W
|
|
Wave Form
|
Pure Sine Wave
|
DC Output
|
4x USB A QC 3.0
|
5V~9V 18W Max
|
|
Type-C 1
|
5V/9V/12V/15V@3A, 20V/2.25A
|
|
Type-C 2
|
5V/9V/12V/15V@3A, 20V/5A
|
|
Car Port
|
13.5V/8A
|
|
2x DC5521
|
13.5V/3A
|
|
Aviation Socket
|
13.5V/8A
|
|
Wireless Charging
|
5W~10W
|
Input
|
AC/DC Adaptor
|
42V/7A (AC Input 100V ~ 240V)
|
|
Car Charger
|
12V~24V 10A, 240W Max
|
|
Solar MPPT Charger
|
12V~42V 10A, 400W Max
|
General
|
Dimensions
|
L430xW257xH261.5mm
|
|
Working Temperature
|
0 ~ 40℃
|
|
Working Humidity
|
0 ~ 90%
|
|
Storage Temperature
|
-20℃ ~ 40℃
|
|
Technical Standard
|
PSE, FCC, CE, UN38.3, ROHS
|
|
Physical Protection
|
IP31/IP54
|
|
AC Output Outlet
|
US/JP/EU/UK/AU/Universal
|
|
Net Weight
|
15kg
|
15kg
|
16.2kg
|
16.3kg
|
Feature Listing
-
IP54 Waterproof Shell
-
Unique Carrying Strap
-
Professional Aviation Socket
-
Four Battery Capacity Options
-
1200W High AC Output
-
High DC 400W Input
-
Various Output Ports
-
Three Recharge Methods
-
Extendable External Battery
Storage and Transportation
-
Based on the character of the cell, a proper environment for transportation of the LiFePO4 battery pack need to be created to protect the battery
-
During transportation, 50% SOC must be kept to ensure that short circuit, the appearance of liquid in the battery, or immersion of battery in liquid never occure
-
The battery should be kept at -20℃ ~ 45℃ in the warehouse where it's dry, clean and well-ventilated
-
During loading of battery, attention must be paid against dropping, turning over and serious stacking
Applications
-
Camping
-
TV
-
Mobile
-
Off-grid photovoltaic
-
Laptop
-
Tablets
-
Electronic facilities
-
Floor Machines
