Lifepo4 Portable Power Station
Lithium Iron Phosphate Power Station 1500W
ILUMA‘s ILP1500W portable power station is a rack-mounted lithium iron phosphate (LiFePO4 battery) Power station ESS (Energy Storage System)
It's an all-in-one portable power stationfor outdoor, tailgating, power outages, medical devices and disaster relief ects, as well as off-grid power supply and home emergency power supply when electricity is cut.
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !
Benefits of 1500W Portable Power Station:
ILP500W is a lithium battery-powered portable backup power supply. It's an all-in-one portable power station for camping, RV travel, car travel, hiking, finishing and other outdoor activies, as well as an off-grid power supply and emergency power supply when electricity is cut.
ILUMA 1500W Portable Power Station:
-
ILUMA's 1500W Power Station performances as USB type-C, USB-A by integrating chargers, solar MPPT charger, LiFePO4 battery, AC/DC bidirectional inverter and DC output outlets
-
It's AC outlets output from 1500W pure sine wave inverter just like the public grid to power your TV, fan, lamp and other household appliances.
-
It's DC outlets gives power to your Laptop, Tablet and Smart phone etc.
-
It is charged by built-in AC/DC charger at home and solar panel in outdoor.
-

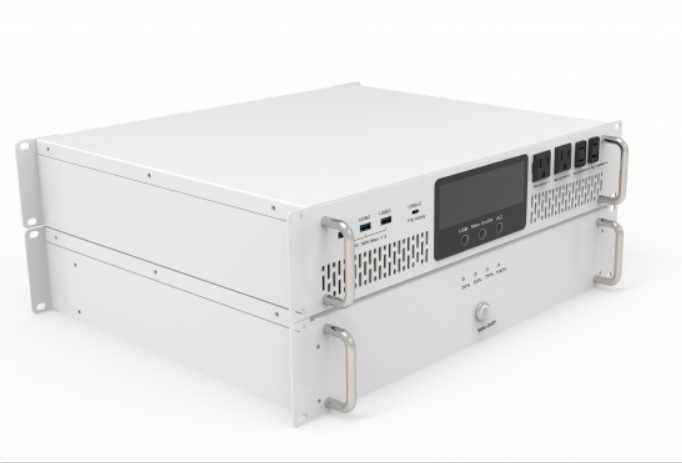

There are two boxes of 1500w portable power station including separated power conversion box (AC-DC, DC-AC, DC-DC) and scalable battery boxes. The two boxes have standard 2U (88mm) height and plug, which plays for standard rack cabinet.
-
The battery capacity is customized as various customer needs.
Widely Applications of 1500W Portable Power Station:
Emergency Power--- This includes emergency charging of electronic devices such as laptops, smartphones and tablets furing power outages, as well as powering common household appliances such as light bulb, washing machines, fans and televisions.
Off-grid Power--- The off-grid living comprises the charging requirements for RV and campsite equipment such as microwave ovens, refrigerators, campsites, electrical cooking equipment, etc. It provides power to such equipment without causing any kind of noise, pollution or fumes.
Data Sheet
|
Item
|
Spec
|
Remarks
|
Model
|
ILP1500W
|
1.5Kwh Portable Solar Energy
|
Shell Material
|
SGCC
|
Steel Galvanized Cold Common
|
Casing Color
|
Creamy White
|
|
Battery Capacity
|
1536Wh (51.2V 30Ah)
|
Easily be changed to 2Kwh by the larger depth
|
Battery Type
|
LiFePO4
|
Lithium Iron Phosphate
|
|
Battery Cell
|
IFR32700-3.2V-6Ah
|
16S5P, 80 cells
|
DC Output
|
Solar PV
|
12V-50V 10A, 400W Max
|
|
|
AC/DC
|
1000W Max
|
100V/110V Or 220V/230V
|
|
Car Port
|
12V-24V 10A, 240 Max
|
|
AC Output
|
Power
|
1500W (4x AC Outlets)
|
Easily be changed to 2kw, 3kw, 5kw
|
|
Wave Form
|
Pure Sine Wave
|
|
|
Output Voltage
|
100V.110V or 220V/230V
|
60Hz/50Hz
|
AC Output
|
3x USB-A
|
5V 3A, 9V/2A, 18W Max
|
|
|
1 x USB-C PD
|
5V/9V/12V/15V/3A, 20V/5A, 100W Max
|
|
|
Net Weight
|
19kg (1.5Kwh Battery) +8.5kg (Inverter)
|

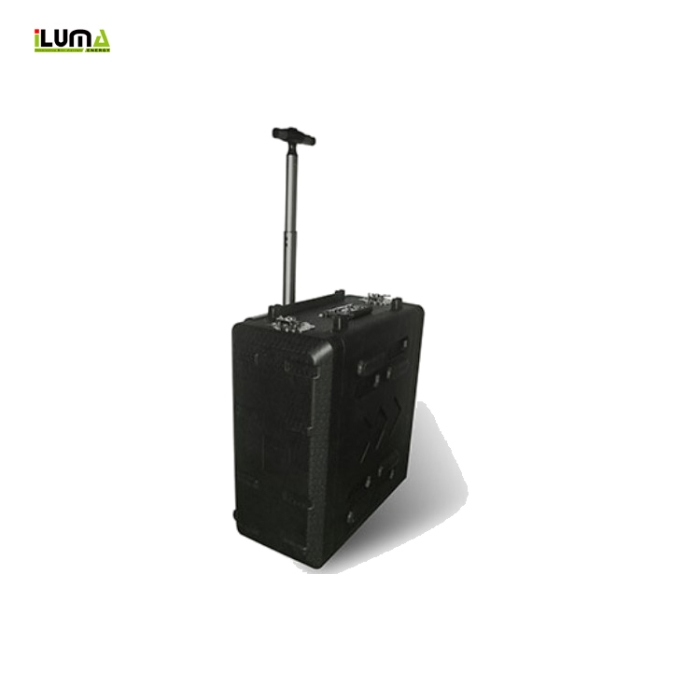

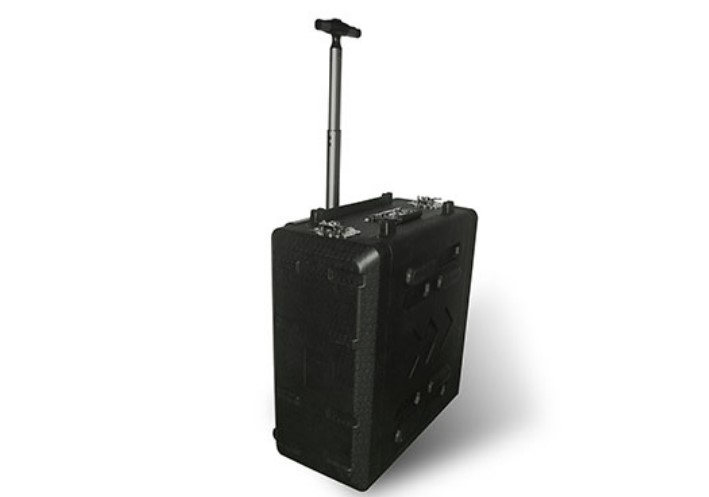

Portable Suitcase 7.5kg
|
|
Product Dimensions
|
2x L482 x W381 x H88mm (Battery, Inverter)
|
Handle Excluded
|
|
Operation Temperature
|
0 ~ 40℃
|
|
|
Operation Humidity
|
0 ~ 90%
|
no condensation
|
|
Storage Temperature
|
-20℃ ~ 40℃
|
|
|
Certifications
|
CE, PSE, RoHS, FCC, MSDS, UN38.3
|
Feature Listing
-
Durable metal sheet housing, smooth and compact appearance design
-
Rack-mounted, plug and play design
-
2U (88mm) for power conversion box and 1.5kwh scalable battery boxes
-
Internal LiFePO4 battery with high energy density, long cycle life and high safety
-
LCD display shows battery capacity, charging status and inverter output
-
1500W AC inverter powers various electrical devices, like hand drill, washing machine, rice cooker, electric fan, TV, lamp, etcs
-
3x USB-A port charge most USB-A devices, such as smart phones, Bluetooth, wearable watches, ects
-
USB Type-C powert supports most USB-C devices, such as laptops, tablets and smart phones
-
Unique charging technology, support DC 12V and 50V voltage
-
Three ways of charging from AC outlet, solar panel and car port
-
Highly integrated circuit design improves product safety, efficiency and functional performance
Storage and Transportation
-
Based on the character of the cell, a proper environment for transportation of the LiFePO4 battery pack need to be created to protect the battery
-
During transportation, 50% SOC must be kept to ensure that short circuit, the appearance of liquid in the battery, or immersion of battery in liquid never occure
-
The battery should be kept at -20℃ ~ 45℃ in the warehouse where it's dry, clean and well-ventilated
-
During loading of battery, attention must be paid against dropping, turning over and serious stacking
Applications
-
Camping
-
TV
-
Mobile
-
Off-grid photovoltaic
-
Laptop
-
Tablets
-
Electronic facilities
-
Floor Machines
