Portable Power For Camping
Best Portable Solar Power Station 500W
ILUMA‘s ILP500W is a set of controllers, inverter and battery in one portable solar power system.
There are advantages of beautiful appearance, lightweigh and durable battery storage.
It is convenient to use electricity at home when power is off or in outdoor.
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !
Benefits of 500W Portable Power Station:
ILP500W is a lithium battery-powered portable backup power supply. It's an all-in-one portable power station for camping, RV travel, car travel, hiking, finishing and other outdoor activies, as well as an off-grid power supply and emergency power supply when electricity is cut.

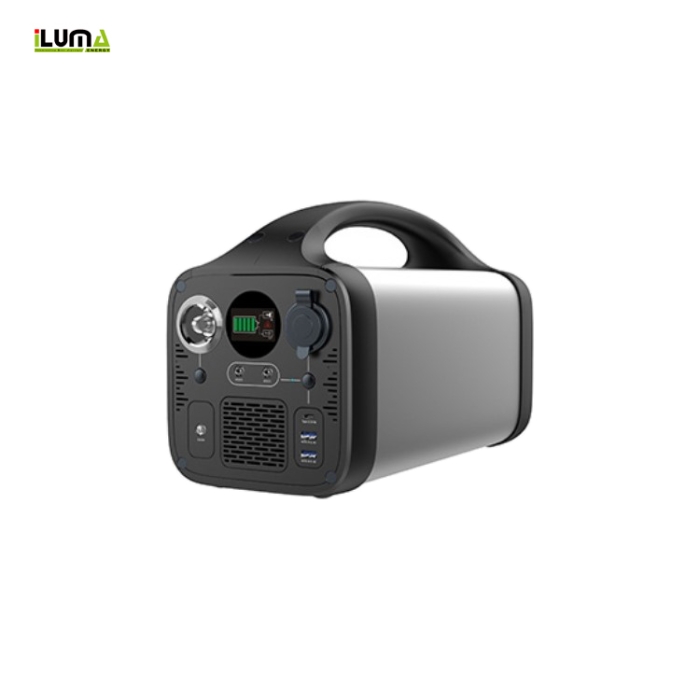

ILUMA 500W Portable Power Station:
-
ILUMA's 500W Power Station performances as USB type-C, USB-A, DC12V and car cigarette socket by integrating chargers, lithium-iron battery, AC/DC inverter and DC output outlets
-
It's AC outlets output from pure sine wave inverter just like the public grid to power your TV, fan and lamp etc.
-
It's DC outlets gives power to your Laptop, Tablet and Smartphone etc.
Widely Applications of 500W Portable Power Station:
The portable energy storage power supply contains a lithium-iron battery as stored energy and a built-inverter circuit.
It supports AC and DC input charging through main power and solar panels.
It is charged through AC220V (110V), DC 5V and 12V too.
It brings much conveniences when you do travel, outdoor operation or suffering earthquakes, medical emergencies and power failures.
Data Sheet
|
Item
|
Spec
|
Remarks
|
Model
|
ILP500W
|
|
Shell Material
|
Aluminum Alloy + ABS + PC
|
|

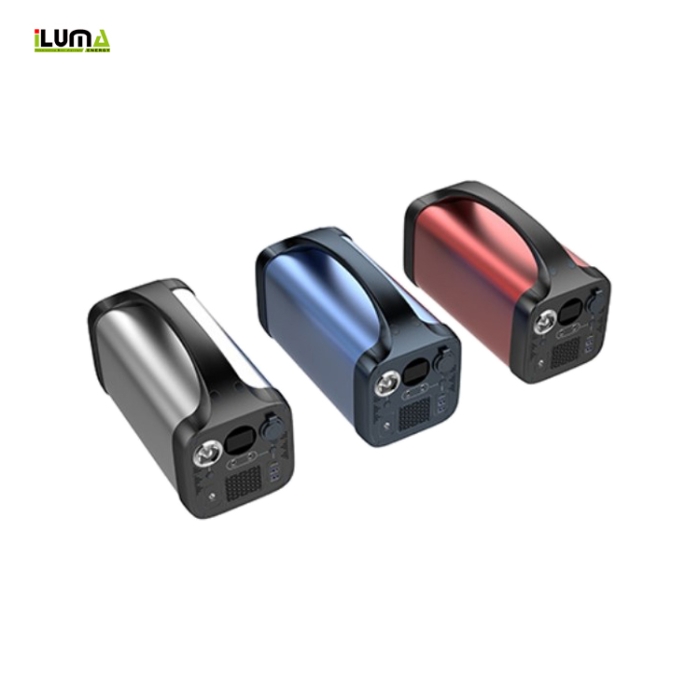

Color
|
Silver, Black
|
Customized
|
Internal Battery
|
648Wh (14.4V 45Ah)
|
Max 1028Wh by Samsung Cell
|
Battery Type
|
Lithium Iron
|
ICR18650
|
Charging
|
PV
|
18V-32V 5A Max
|
by solar panel
|
|
AC/DC
|
24V 5A
|

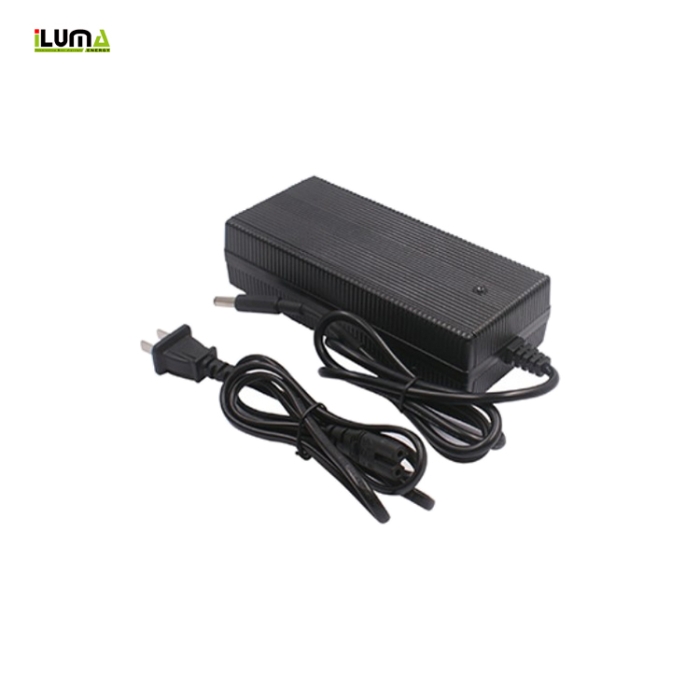

by included AC/DC adaptor
|
|
Car
|
24V 5A Max
|
by cigarette port
|
AC Output
|
Power
|
500 watts
|
2 outlet
|
|
Wave Form
|
Pure sine wave
|
|
|
Voltage
|
100V/110V OR 220V/230V
|
|
|
Frequency
|
60Hz OR 50Hz
|
|
DC Outputs
|
2 x USB-A QC3.0
|
5V/3A, 9V/2A (18W Max)
|
Automatic charging voltage and current
|
|
1x DC12V
|
12V 5A
|
Cigarette socket
|
|
1x USB-C PD
|
5V 3A, 9V/12V/15V 3A, 20V 2.25A (45W Max)
|
Automatic charging voltage and current
|
|
2 x DC5521
|
12V 3A
|
|
|
LED Flashlight
|
1 watt
|
High/Soft Lighting Switchable
|
|
Net Weight
|
7.8kg
|
17.2 lbs
|
|
Product Dimensions
|
L346 x W169 x H226mm
|
L13.6'' x W6.65'' x H8.9''
|
|
Operation Temperature
|
0 ~ 40℃
|
|
|
Operation Humidity
|
0 ~ 90%
|
no condensation
|
|
Storage Temperature
|
-20℃ ~ 40℃
|
|
|
Certifications
|
CE, PSE, RoHS, FCC, MSDS, UN38.3
|
Feature Listing
-
Durable and lightweight aero-grade aluminum alloy shell
-
Internal high energy density long cycle life lithium iron battery
-
AC 500W inverter powers various digital products and electrical devices, like desktop PC, fan, TV and Lamp etc
-
DC 12V cigarette port supports car on-board devices, like car refrigerator, car vacuum and car inflator etc
-
3 ways to recharge by solar panel, 24V car cigarette included AC/DC adaptor
-
3 ways to recharge by solar panel, 24V car cigarette included AC/DC adaptor
Storage and Transportation
-
Based on the character of the cell, a proper environment for transportation of the LiFePO4 battery pack need to be created to protect the battery
-
During transportation, 50% SOC must be kept to ensure that short circuit, the appearance of liquid in the battery, or immersion of battery in liquid never occure
-
The battery should be kept at -20℃ ~ 45℃ in the warehouse where it's dry, clean and well-ventilated
-
During loading of battery, attention must be paid against dropping, turning over and serious stacking

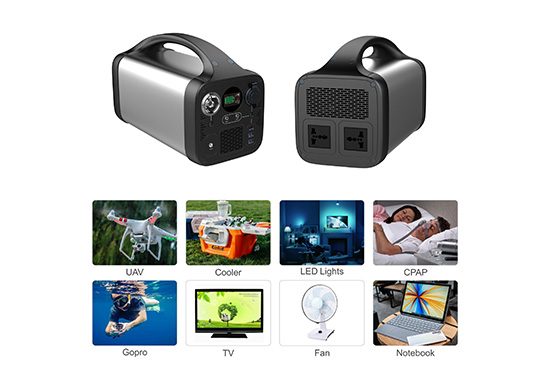

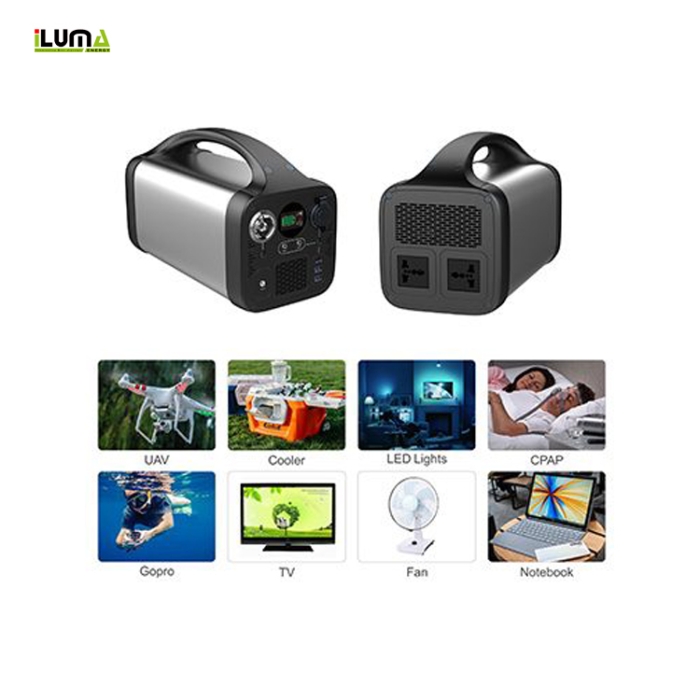

Applications
-
Camping
-
TV
-
Mobile
-
Off-grid photovoltaic
-
Laptop
-
Tablets
-
Electronic facilities
-
Floor Machines
