Rechargeable Power Station
Mobile Power Station 100W
ILUMA‘s Mobile power station ILP100W is a lithium battery powered portable backup power supply and energy storage unit. It's an all-in-one portable power station for camping, RV travel, car travel, hiking, finishing and other outdoor activities, as well as off grid energy storage power supply and emergency power supply when electricity cut.
ILUMA is the professional lithium battery manufacturer to providing lithium battery solutions, and OEM & ODM are available too !
Benefits of 100W Portable Power Station:
Portable Power Station performances as 5V USB and DC 12V outlets by integrating chargers, lithium iron battery, AC/DC inverter and DC output outlets.
Its inside modified sine wave inverter gives 100w power from AC outlet.

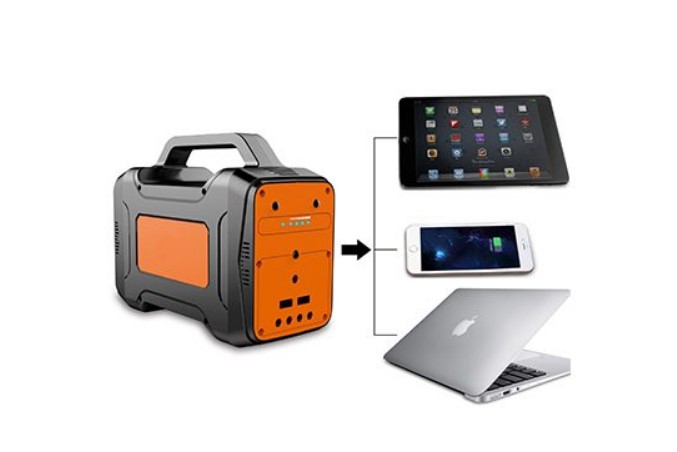

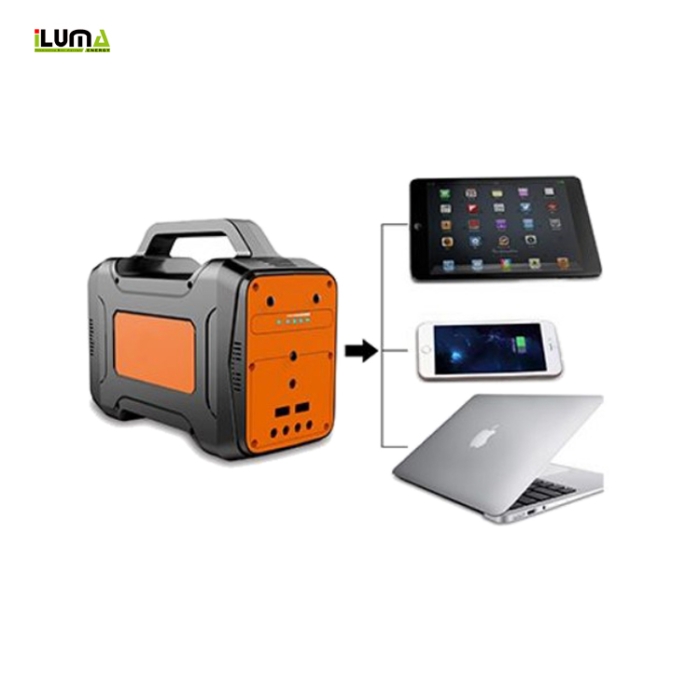

It powers your TV, Fan, Lamp ects, and your laptop, tablet, smart phones ects can be powered from its USB outlets too.
It is easily to be charged by included AC/DC adaptor when you have utility power at home or by solar panel in outdoor
ILUMA 100W Portable Power Station:
-
ILUMA's 100W Power Station reduces the usage of diesel generator and provides power without causing any kind of noise, pollution or fumes.
-
The energy storage units helps to power the off-grid facilities all the time when you are camping, visiting water parts and doing outdoor recreational activities.
Widely Applications of 100W Portable Power Station:
Emergency Power comprises emergency charging of electronics devices, such as Laptops, Smart Phones and Tablets ects when they are off-grid in blackout and outage times.
It can be a good substitute when suffering severe wheather evens such as stroms, earthquakes ects.
It also gives emergency power when lighning, aging power grid infrastructure and other time that overburden transformers, electric cables, and other transmission and electrical distribution equipment.
Data Sheet
|
Item
|
Spec
|
Remarks
|
Model
|
ILP100W
|
|
Shell Material
|
ABS + PC
|
|
Color
|
Black + Orange / Blue / Red
|
Customized
|
Internal Battery
|
130Wh
|
Customized maximum 162Wh
|
Battery Type
|
Lithium Iron
|
ICR18650
|
Charging
|
PV
|
12.9V-24V 2A Max
|
by solar panel
|
|
AC/DC
|
12.9V 2A
|
by included AC/DC adaptor
|
AC Output
|
Power
|
100 watts
|
AC outlet (US/JP/EU/Universal Types)
|
|
Wave Form
|
Modified sine wave
|
|
DC Outputs
|
2 x USB-A
|
5V 2A
|
|
|
4 x DC5525
|
9V-12V 2.4A
|
for optional DC lamps
|
|
Flashlight
|
1.5 watt
|
High/Soft Lighting Switchable
|
|
Floodlight
|
5 watts
|
High/Soft Lighting Switchable
|
|
Net Weight
|
1.5kg
|
3.3 lbs
|
|
Product Dimensions
|
L204 x W90 x H161mm
|
L8.0'' x W3.54'' x H6.34''
|
|
Operation Temperature
|
0 ~ 40℃
|
|
|
Operation Humidity
|
0 ~ 90%
|
no condensation
|
|
Storage Temperature
|
-20℃ ~ 40℃
|
|
|
Certifications
|
CE, PSE, RoHS, FCC, MSDS, UN38.3
|
Feature Listing
-
Two palms size with lightweight
-
Internal high energy density lithium iron battery with capacity from 130Wh to 162Wh for different demands
-
4 LED indicators show battery capacity during charge and discharge
-
Independent switches of main on/off, flashlight and floodlight
-
AC 100W inverter output powers various digital products and electrical devices, like laptop, fan, TV, ect
-
Dual USB 5V/2A ports charge most USB-enabled devices, like cellphone, GPS, Bluetooth, etc
-
4 DC 12V/2A ports with DC lamps offer extendable lighting demands
-
2 ways to recharge by solar panel and included AC/DC adaptor
Storage and Transportation
-
Based on the character of the cell, a proper environment for transportation of the LiFePO4 battery pack need to be created to protect the battery
-
During transportation, 50% SOC must be kept to ensure that short circuit, the appearance of liquid in the battery, or immersion of battery in liquid never occure
-
The battery should be kept at -20℃ ~ 45℃ in the warehouse where it's dry, clean and well-ventilated
-
During loading of battery, attention must be paid against dropping, turning over and serious stacking
Applications
-
Camping
-
TV
-
Mobile
-
Off-grid photovoltaic
-
Laptop
-
Tablets
-
Electronic facilities
-
Floor Machines
